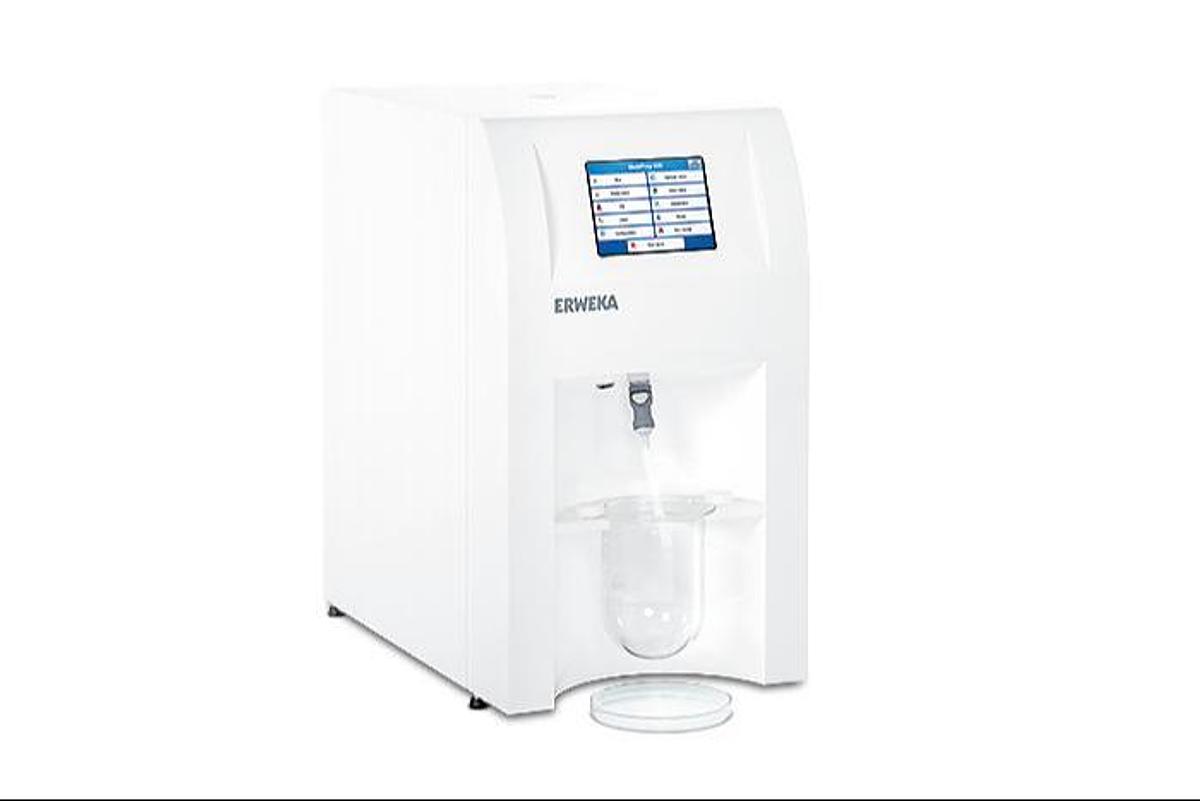

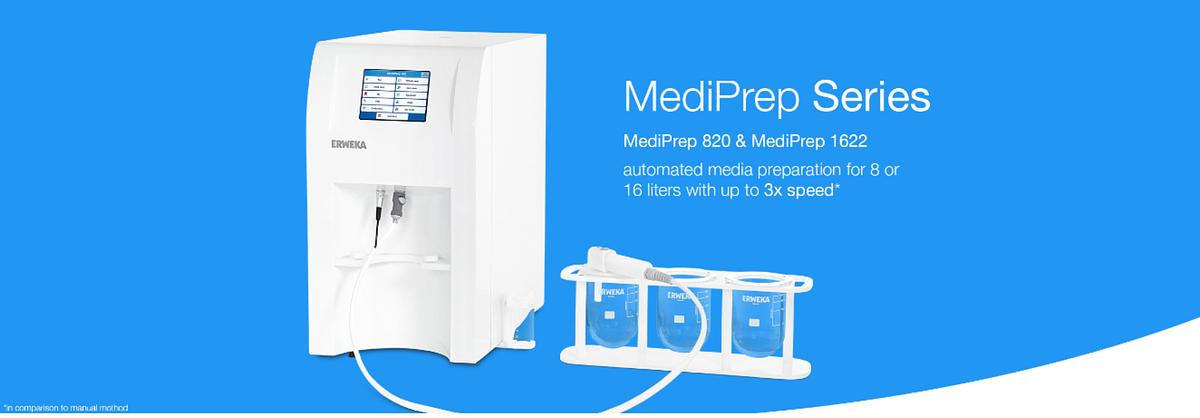

MediPrep 820 & 1622 Automated Dissolution Media Prep

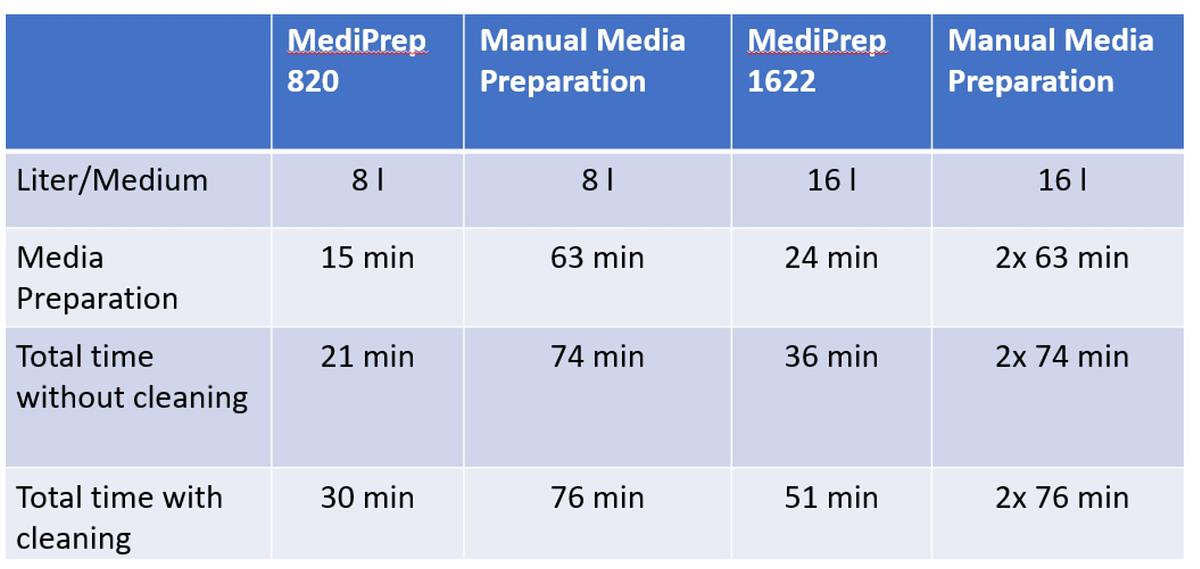

The MediPrep 820 series offers quick and easy preparation of up to 8 liters dissolution media in less than 15 minutes. The MediPrep 1622 only needs 25 minutes to prepare dissolution media - 3 times faster than manually done according USP! In a single pass, the media for dissolution tests can be precisely mixed, heated, degassed and gravimetrically filled into vessels. Foaming media like SDS (Sodium Dodecyl Sulfate) can also be used.

Filling can be done at the integrated dosing port or with the optional remote filling hand directly into the vessels.

The MediPrep 1622 additionally provides two inlets for premixed media and one outlet for wastewater. To prevent cross contamination, an automated cleaning procedure is integrated.

VersionsMedi

Prep 820 for 8 l dissolution medium

MediPrep 1622 for 16 l dissolution mediumFunctionsMediPrep 820: Vacuum degassing, heating, gravimetric filling

MediPrep 1622: Mixing, diluting, vacuum degassing, heating, gravimetric filling

US pharmacopeia conformance

Inlet for premixed media

MediPrep 820: 1 Inlet for media from external sourceMediPrep 1622: 1

Inlet for media from external source, 2 inlets for concentrates

Outlet for residual or waste medium

Remote dosing handOptionalControlTouch panel 7"

Common aqueous media at least 2 Physiological media pH 1-12, at min. 2

Time needed for media preparation of 8 l≤ 15 min (depending on degassing time)

Time needed for media preparation of 16 l≤ 24 min (depending on degassing time)

Mixing accuracy (only 1622)≤ 1 % with a ratio of concentrate to water 1:9 to 1:1 (m/m)

Handling of foaming media (SDS)

Max. 1 % solution at max. 6 l

(MediPrep 820), Max. 1 % solution at max. 14 l

Dosing volume and accuracy250-1000 ml, max. 1 %Weighing accuracy≤ 0.1 % at 2 kg

Heating temperature, accuracyMax. 50° C, ± 0.2° C

Degassing pressure, accuracy≤ 200 mbar, ± 10 mbar

Product memoryMax. 100

User memory

Max. 50, password-protected access

InterfacesUSB-A for printer,

RS-232 interface for firmware

Dimensions (height x width x depth)692 x 367 x 645 mm

Weight36 kg (MediPrep 820), 42 kg (MediPrep 1622)

Power supply, safety fuses115 or 230 50/60Hz, 2 x 16 A

Power consumptionMax. 2000 W
