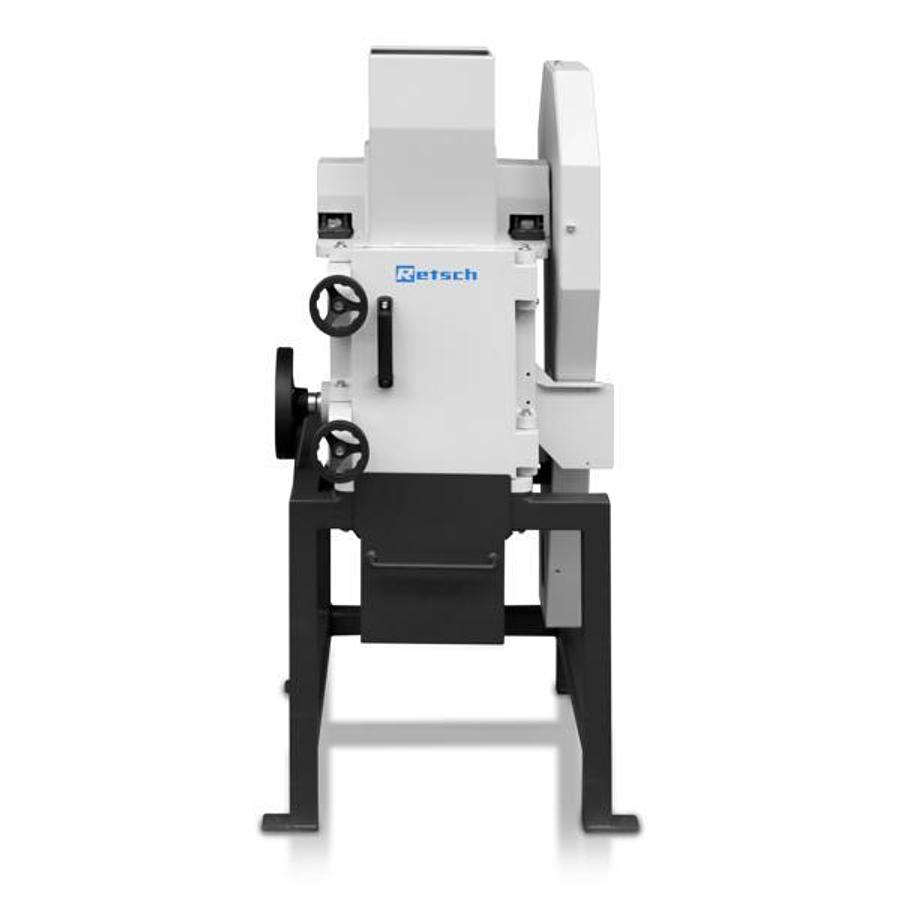

Jaw Crusher BB 400

The Jaw Crusher BB 400 XL is used for rapid, effective crushing and pre-crushing of medium-hard, hard, brittle and tough materials.It is available in a wide range of materials of construction including heavy-metal free steel and offers excellent efficiency and unrivaled safety making this jaw crusher ideal for sample preparation in laboratories and industrial plants. For small amounts of sample the BB 400 XL is usedbatch-wise; for larger amounts it can be operatedcontinuously. Control of the gap width and zero point adjustment allow for reproducible results.

Thanks to the modular construction of housing and frame this jaw crusher is suitable for a wide range of applications.

Application Examples

alloys, basalt, cement clinker, ceramics, chamotte, coal, coke, construction materials, feldspar, glass, granite, minerals, ores, oxide ceramics, quartz, rocks, silicon, slag, ...

Product Advantages

Features

Applications coarse and pre-crushing
Field of application chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics
Feed material medium-hard, hard, brittle, tough
Size reduction principle pressure
Material feed size* < 220 x 90 mm
Final fineness* < 2 mm
Material of grinding tools manganese steel, tungsten carbide, steel for heavy-metal free grinding
Jaw width 220 x 90 mm
Gap width setting 0 - 30 mm
Gap width display scale
Zero point adjustment yes
Wearing rate display yes, up to minus 10 mm
Removable hopper yes
Dust extraction unit yes
Central lubrication -
Process line version optional
Collector capacity 10 l
Base frame vario frame (adjustable for continous crushing)
Drive 3-phase motor
Drive power 5.5 kW
Electrical supply data different voltages
Power connection 3-phase
Protection code IP 55
W x H x D closed 695 x 1399 x 719 mm
Net weight ~ 400 kg
