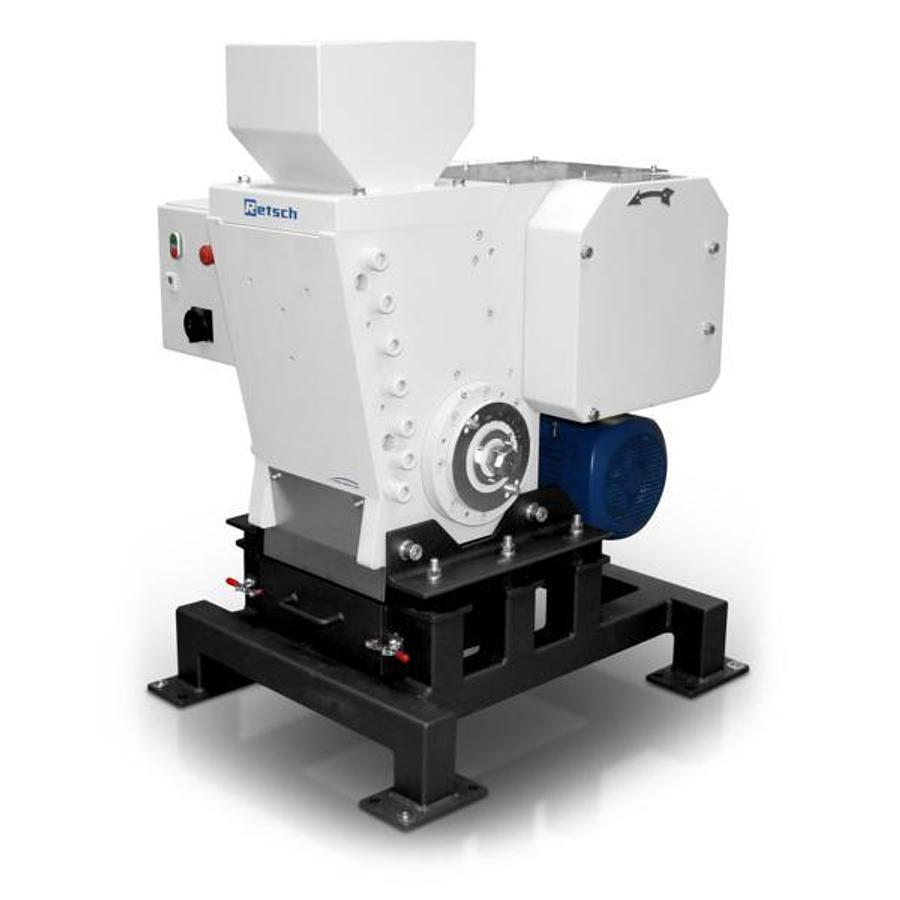

Jaw Crusher BB 500

The Jaw Crusher BB 500 XL is used forrapid, effective, crushing and pre-crushing of medium-hard, hard, brittle and tough materials.It is available in wide range of materials of construction including a heavy-metal free steel and offers excellent efficiency and unrivaled safety making this jaw crusher ideal for sample preparation in laboratories and industrial plants

For small amounts of sample the BB 500 XL is usedbatch-wise; for larger amounts it can be operatedcontinuously. Control of the gap width and zero-point adjustment allow for reproducible results.

The BB 500 XL with itssteep crushing chamber and powerful drive provides for very effective crushing kinematics.

Application Examples

alloys, basalt, cement clinker, ceramics, chamotte, coal, coke, construction materials, feldspar, glass, granite, minerals, ores, oxide ceramics, quartz, rocks, silicon, slag, ...

Product Advantages

Features

Applications coarse and pre-crushing
Field of application chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics
Feed material medium-hard, hard, brittle, tough
Size reduction principle pressure
Material feed size* < 110 mm
Final fineness* 90% < 0.5 mm
Material of grinding tools manganese steel
Jaw width 250 x 130 mm
Gap width setting 0 - 11 mm
Gap width display scale
Hinged hopper yes
Dust extraction unit yes
Central lubrication -
Process line version optional
Collector capacity 15 l
Drive 3-phase motor
Drive power 7.5 kW
Electrical supply data different voltages
Power connection 3-phase
Protection code IP 55
W x H x D closed 930 x 1400 x 1080 mm
Net weight ~ 1000 kg
