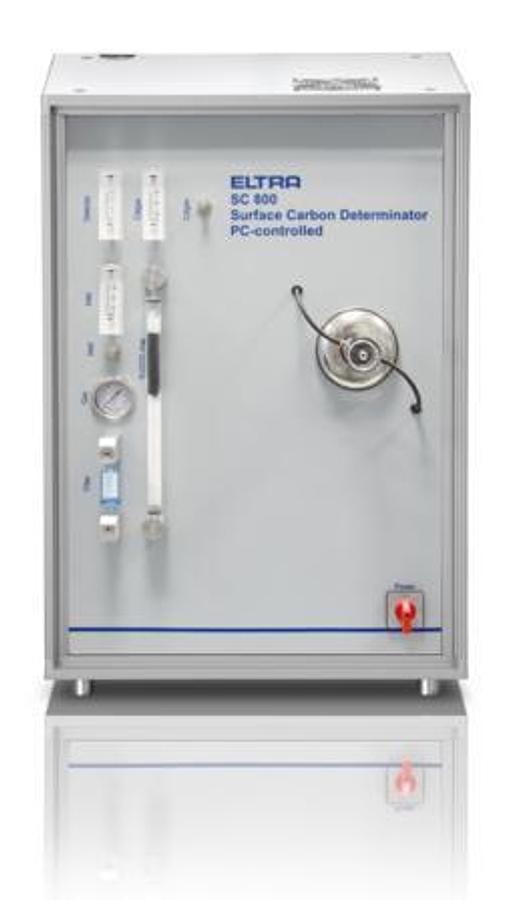

SurfaceC‑800 Surface Carbon Analyzer

Determination of surface carbon is a special requirement for quality control in the metal producing and metal working industry.ELTRA’s SurfaceC-800 analyzer is designed for the precise determination of surface carbon in numerous kinds of solid samples from trace level up to 1000 µg/cm2.
The SurfaceC-800 is equipped with a resistance furnace with quartz tube for sample oxidation and can provide temperatures up to 1000 °C. The temperature of the SurfaceC-800 can be set up in steps of 1 °C. As common carrier gas in the SurfaceC-800 oxygen is used.
The detection system of ELTRA’s SurfaceC-800 is very sensitive, reliable and guarantees a long lifetime. It can be customized according to the user’s requirements. It is possible to combine two infrared cells independently to allow for highly precise measurement of surface carbon from trace level up to large amounts.

Product Advantages

Features

Measured elements: Carbon
Samples: inorganic
Furnace alignment: horizontal
Sample carrier: quartz boats
Fields of application: ceramics, steel / metallurgy
Furnace: resistance furnace with quartz tube, adjustable up to 1000 °C
Maximum sample size: 32 x 145 mm
Detection method: solid state infrared absorption
Number of IR cells: 1 - 2
Material of IR path: aluminum (optional gold)
Typical analysis time: 60 - 90 s
Chemicals required: magnesium perchlorate, sodium hydroxide
Gas required: oxygen 99.5 % pure (2 - 4 bar / 30 - 60 psi)
Power requirements: 230 V, 50/60 Hz, max. 10 A, 2300 W
Dimensions (W x H x D): 55 x 80 x 60 cm
Weight: ~ 65 kg
Required equipment: balance (resolution 0.0001g), monitor, PC
Optional accessories: voltage stabilizer 5 KVA
