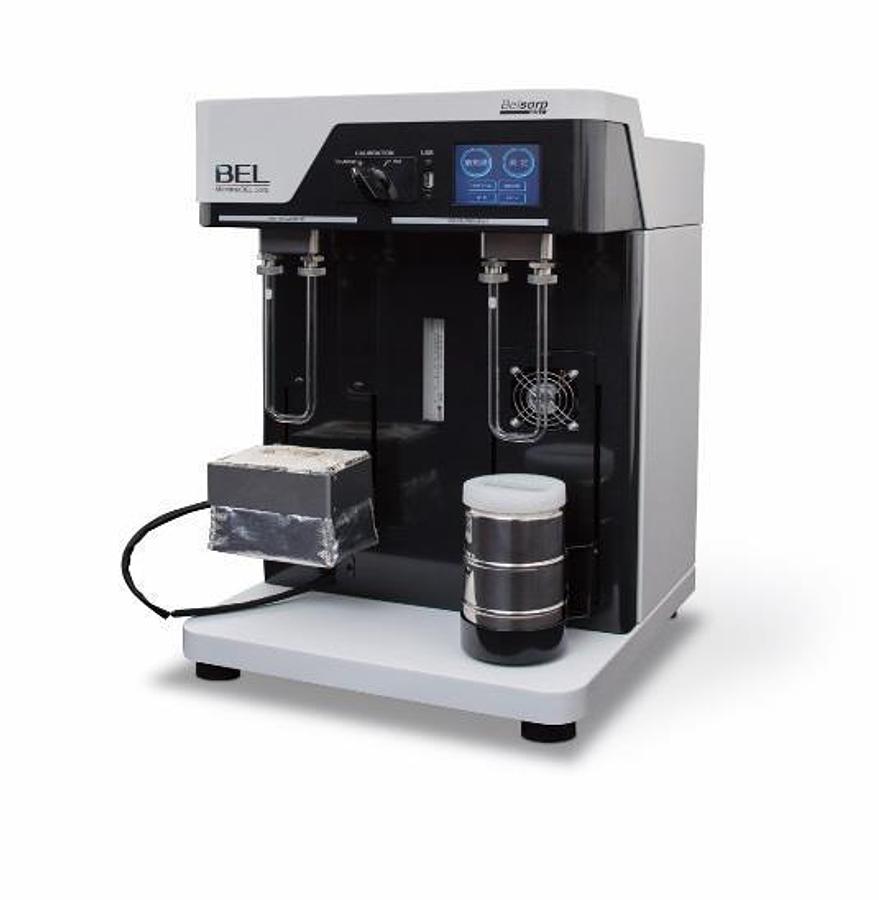

BELSORP MR1 BET Surface Area Analyzer

BELSORP MR1 BET Surface Area Analyzer

or
Call 1-800-661-6700

Description

The BELSORP MR1 is designed for rapid and convenient BET single-point measurement.


Highly efficient measurement

Simultaneous pre-treatment and measurement improve process efficiency.BET single-point measurement of specific surface area possible in approx. 15 mins (including calibration).


Highly accurate measurement

  • AUTO-ZERO function is equipped with a highly sensitive thermal conductivity detector (TCD)
  • High accuracy, high sensitivity, high reproducibility
  • A dedicated calibration valve enables simple and stable calibration measurements

    • Automatic measurement of temperature and pressure for accurate calibration.


    Easy Operability

  • Easy handling thanks to an automatic Dewar elevator and a cooling fan
  • User-friendly touch panel
  • Measurement results and trend data can be saved to a USB memory drive
  • Compact design without external PC
    • Show All

    Specifications

    ManufacturerMicrotrac
    Stock Number00052
    Measurement principleDynamic flow gas method (Single point BET)
    DetectorThermal Conductivity Detector (TCD)
    Adsorption gasN2 / Kr
    Carrier gasHe
    Number of measured samples1
    Pretreatment temperatureUp to 400°C
    Measurement range0.01 m2/g and above
    Repeatabilitywithin ±1.0%
    Measurement timeApprox. 15 minutes (including calibration, excluding pretreatment time)
    Dimensions (W x H x D)350 x 553 x 368 mm
    Weight (main body)30 kg
    Utility - PowerAC 100 - 120 V / AC 200 - 240 V, 400 W, 50 / 60 Hz
    CE certifiedyes
