BM-200 Mixer/Mill®, Mini (SPEX #5120)

BM-200 Mixer/Mill®, Mini (SPEX #5120)

or
Call 1-800-661-6700

Description

The

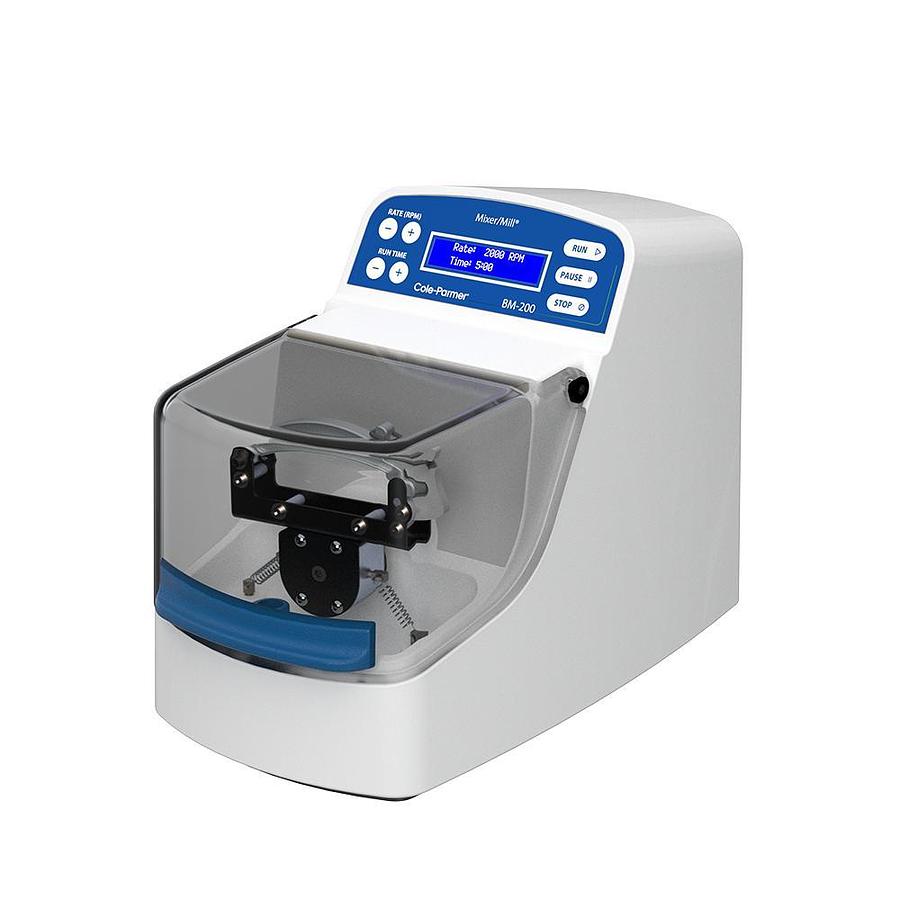

The BM-200 Mixer/Mill, Mini (SPEX #5120) is ideal for pulverizing the toughest rocks, mineral, cement, and ceramics; rapidly reducing samples to analytical fineness; blending powders; and making emulsions. Finely grinding the sample increases the surface area to improve acid dissolution for ICP, and pellet pressing or fusion bead for XRF.

Features:

  • Interchangeable sample vial holders for agate, steel, and tungsten carbide vials.
  • High-intensity oscillating motion mills samples in seconds.
  • Programmable control panel includes rate, run time and pause functions.
  • Four speeds over the 750-3500 RPM range for slow-speed mixing to high-speed milling for tough samples.
  • Safety interlock stops the motor if the lid is opened during the homogenization process.
  • Clear lid for viewing the sample milling process.
  • Can be operated remotely with a portable battery pack.

    • Specifications:

    Voltage 115V / 60Hz or 230V / 50Hz
    CSA Approved Yes
    Dimensions 15 in. (38 cm) long x 8 in. (20.5 cm) wide x 11 in. (30 cm) high.
    Net Weight 24 lbs (11 kg)
    Motor 1/7 HP
    Power Cord 3-prong grounded plug-115V / 60Hz. 2-prong European cord for 230V / 50Hz.
    Clamp Speed 750, 2000, 3000, 3500 RPM

    Show All

    Specifications

    ManufacturerCole-Parmer

    Documents
