Description

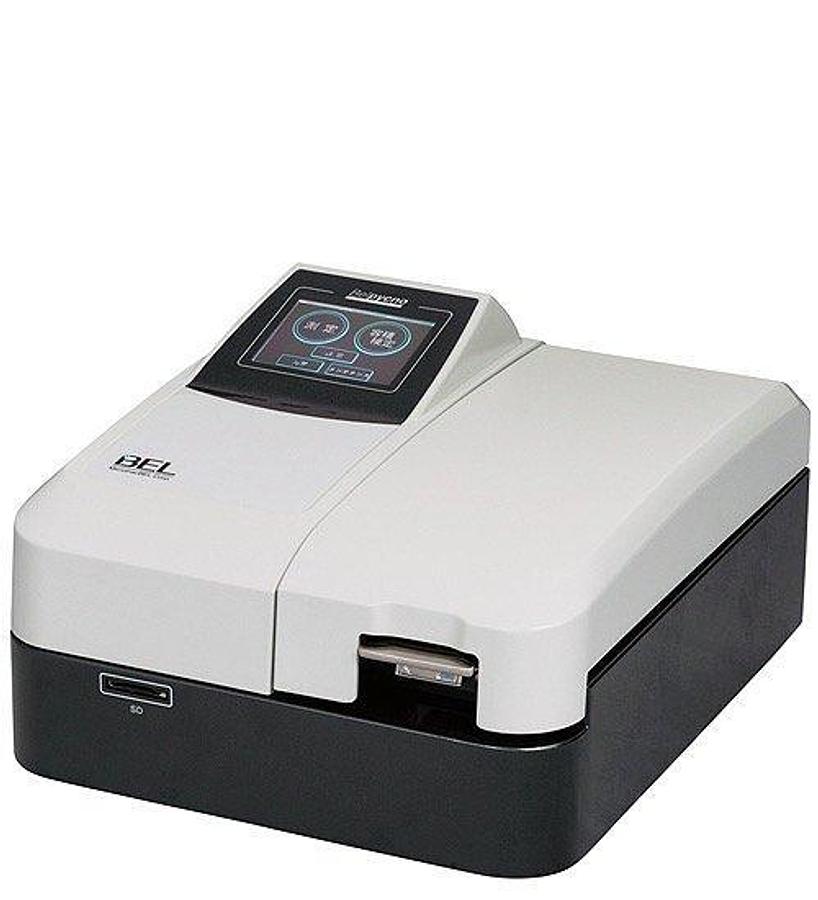

The BELPYCNO is an analyzer for quick and reliable measurement of the true density of solid materials and powders using by gas displacement.
The BELPYCNO offers high-resolution pressure measurement, variable cell volumes, greaseless, and one-touch sample cell cap. These features ensure high accuracy of the measurement result and easy operation.

  • Highly precise measurement of the sample volumes thanks to variable cell volumes
  • Sample cell cap without grease
  • Convenient one-hand operation via touch screen

    • Technical Data


    Options

  • Label printer for result output
  • Sample weight acquisition from electronic balance
  • Thermostatic water bath to maintain the sample temperature

    • Downloads

  • Show All

    Specifications

    ManufacturerMicrotrac
    Measurement principleGas displacement method
    Sample cell volume10 cm3, 3.5 cm3, 1 cm3
    Measurement accuracy0.03% of F.S. +0.03% of reading
    Repeatability0.02% of F.S.
    PretreatmentGas purge, flow, vacuum (option)
    Pretreatment pressure0-145kPa (Gauge)
    Applicable gasHe, N2, inert gas
    Measurement pressure145kPa (Gauge)
    Repetition times of measurementMaximum 100 times
    Mean number of measurementMaximum 10 times
    Measurement temperature range15-35°C, water bath: 15-50°C (option)
    Calibration methodAutomatic calibration with calibration sphere
    InterfaceInput: RS232C (communication with printer)Output: RS232C (communication with electric balance)
    Dimensions (W x H x D)270 x 170 x 300 mm
    Weight8 kg
    Utility - GasHe, N2, inert gases: 150kPa (G)
    Utility - Joint1/8" Swagelok connection
    Utility - PowerAC100~120V/200-240 V / 200 W, 50 / 60 Hz
    CE certifiedyes
