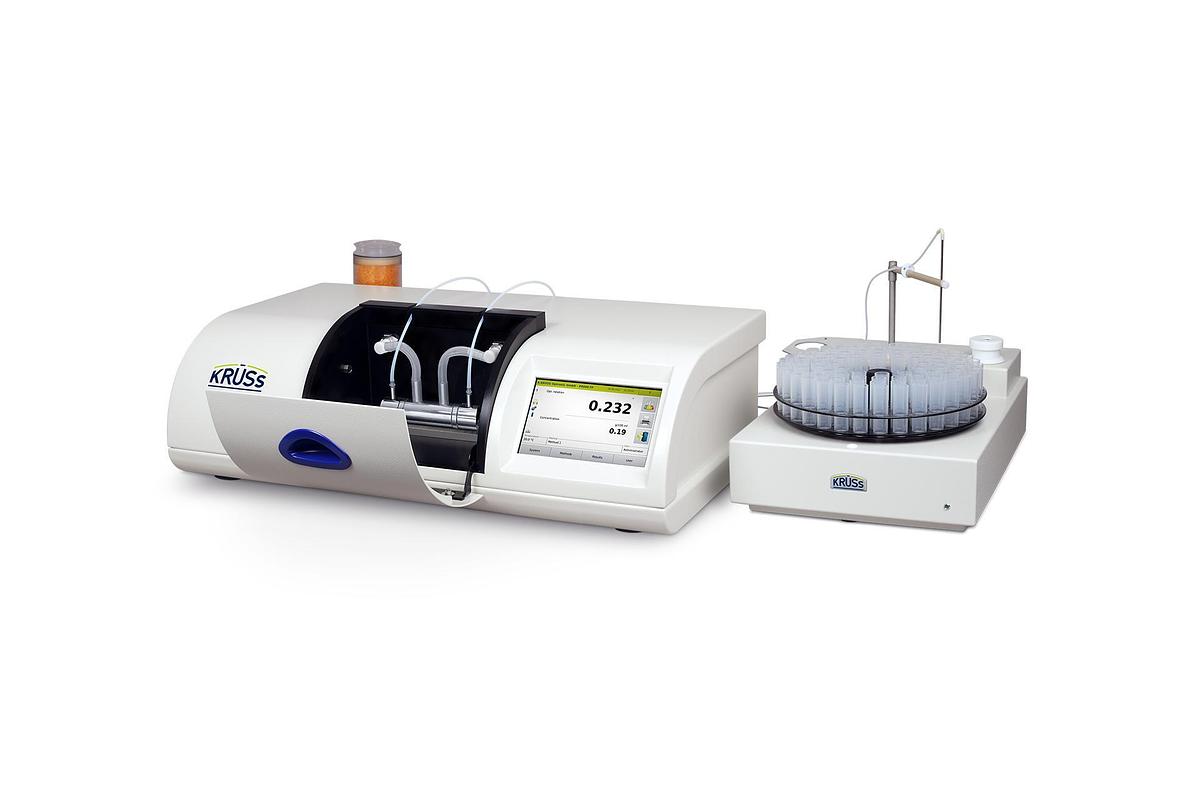

P8000 & P8100 Series Polarimeters

Description

These rugged, high-end polarimeter models P8000-P and P8100-P, which otherwise have the same range of functions and the same properties as the other devices in the P8000 series, offer high-precision measurements through sample temperature control without an additional external device.They are recommended if the sample temperature is to be controlled extremely precisely and independently of external temperature conditions in a particularly short time and with a short control circuit.

Temperature measurement at the gauge

Exact, homogeneous, fast Peltier sample temperature control

Acid-resistant, unbreakable glass/stainless steel gauge

Highest accuracy over the entire measuring range

Particularly short measuring time of approx. 1 s

Measure to an optical density of 3.0 OD

Intuitive operation via touchscreen display

Predefined scales (optical rotation, spec. rotation, int. sugar scale, concentration)

Any number of freely definable scales with conversions based on tables or formulas

Chemical Resistant Materials

Compliance with GMP/GLP, 21 CFR Part 11, Pharmacopeias (USP, BP, JP, Ph. Eur.), FDA, ISO, HACCP, OIML, ASTM, ICUMSA, NIST

TechnicalSpecifications

	P8000-P	P8100-P
MEASUREMENT ACCURACY	±0.003° ±0.01°Z	±0.002° ±0.01°Z

Specifications

Manufacturer	A.Kruss Optronic
SCALES	Optical rotation [°]Int.Sugar scale [°Z]Concentration [g/100 ml]Spec. rotationUser defined
MEASUREMENT RANGE	±90°±259°Z
RESOLUTION	0.001°0.01°Z
MEASUREMENT TIME ±90°	Approx. 1s
LIGHT SOURCE	1 LED with filter
WAVELENGTH	589nm
SENSITIVITY (OPTICAL DENSITY)	Up to OD3 (0.1%)
MAX.TUBE LENGTH	220mm
METHODS	Virtually unlimited number of methods can be set
ADJUSTMENT	Automatic (menu-driven)
TEMPERATURE CONTROL	With gauge PRG-100-EPT with 3 integrated Peltier elements
TEMPERATURE RANGE	0-99.9°C
TEMPERATURE ACCURACY	±0.2°C
TEMPERATURE MEASUREMENT	With temperature sensor PRT-E or PRT-T
TEMPERATURE MEASUREMENT RESOLUTION	0.1°C
