Description

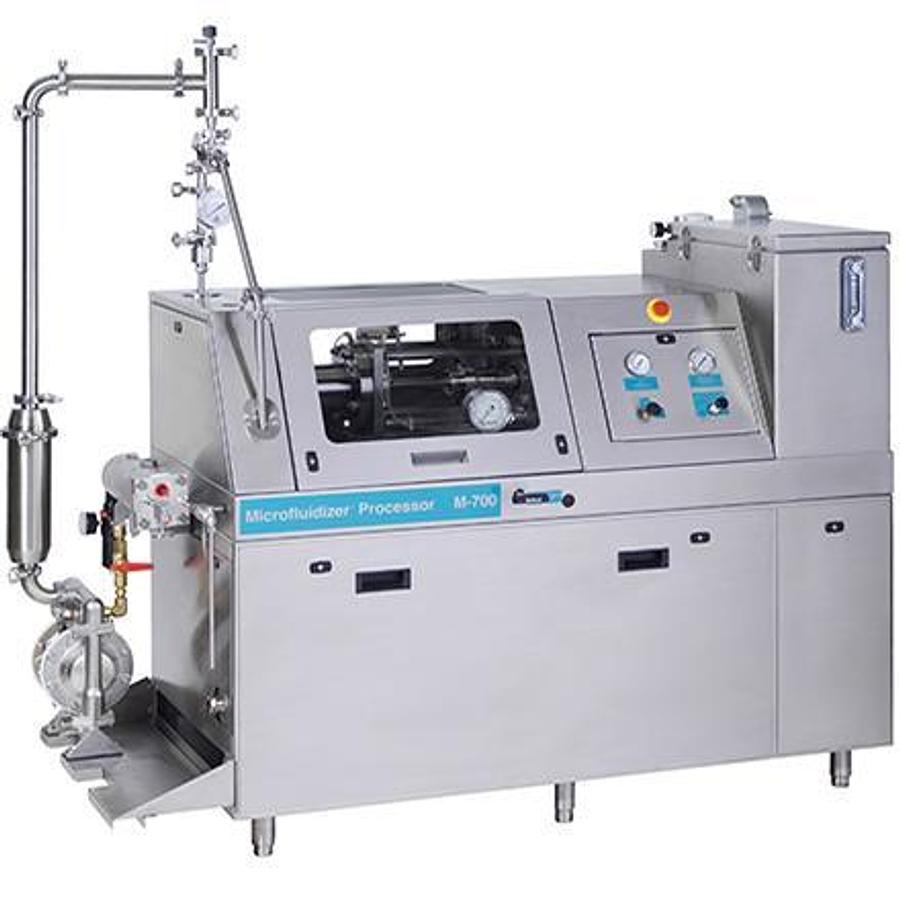

Ultra-High Shear Manufacturing Processing


Once the suitable pilot batches are achieved, scale up seamlessly to full production with one of the M700 series models.

The M700 series processors have proven to be cost-effective in a broad range of industries. Utilizing theMicrofluidizer®technology, these processors deliver the finest and most uniform distribution of submicron particle size at the highest shear rates available. Emulsions and suspensions are more stable, creating superior final products.

The M700 series machines have the same high-pressure, multi-slotted fixed-geometryInteraction ChambersTMthat all the Microfluidics equipment possess. It means that identical high shear rates are imparted to product formulations as are achieved on lab scale and pilot scale machines through scalable Interaction ChambersTM.

The M7125 and M7250 models generate up to 30,000 psi operating pressure for premium results at an affordable cost. Flow rates of 300 to 900 L/hr are achievable with the right model.

A broad range of throughput in continuous or batch mode is possible due to the fact that the machine can process at a wide range of pressures and flows.

Standard Features

  • Proven to be highly reliable at operating pressures up to 30,000 psi in pilot and production environments.
  • Generates the highest shear rates of any fluid processor on the market today, which results most often in achieving desired product quality in a single pass.
  • Wear-resistant Interaction Chamber™ with fixed-geometry design ensures that the entire product stream encounters equal energy-per-unit fluid volume.
  • Highly durable intensifier pumping system is efficient at ultra-high pressures.
  • High-pressure plunger seals and check valves
  • Model M7250 unit comes standard with two synchronized intensifier pumps for increased flow rates.
  • Open isolator to prevent process fluid and hydraulic fluid contact.
  • Simple, efficient electric/hydraulic drive system
  • Coned and threaded tubing and fittings
  • In-line cleaning with no disassembly required
  • All stainless-steel construction
  • Validatable for cGMP and cGAMP application

    • Show All

    Specifications

    ManufacturerMicrofluidics
