CAMSIZER XL Industrial Particle Size and Shape Analyzer

The CAMSIZER® XL by Microtrac measures the size and shape of large dry particles from 160 µm to 135 mm using dynamic image analysis. It characterizes more than 40 particle parameters, helping laboratories assess material quality, identify variations, and support quality control across a wide range of bulk materials.

Applications and industries

The CAMSIZER XL supports particle characterization and quality control for materials containing large, dry particles.

• Construction and building materials: Analyzes aggregates, cement-related materials, and other bulk solids to assess particle size distribution and shape for material quality control.
• Fertilizers: Measures particle size and shape to evaluate product consistency and identify variations in granule characteristics.
• Mining and geology: Characterizes coarse mineral particles and geological materials to support material evaluation and process quality control.
• Glass manufacturing: Analyzes glass beads and other coarse granular materials to assess particle dimensions and shape.
• Food processing: Measures suitable dry, coarse food particles to support size classification and product quality assessment.
• Wood processing: Characterizes wood chips and other large particles to evaluate size distribution and shape consistency.

Product specifications

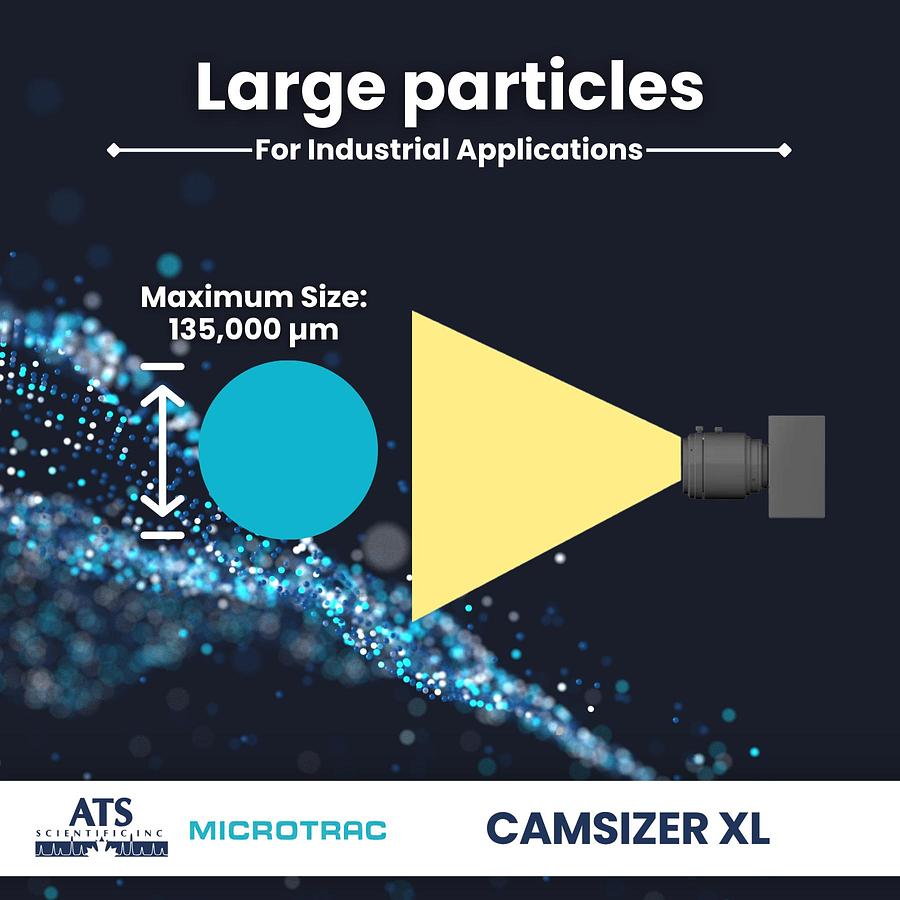

• Wide measuring range: Measures particles from 160 µm to 135 mm.

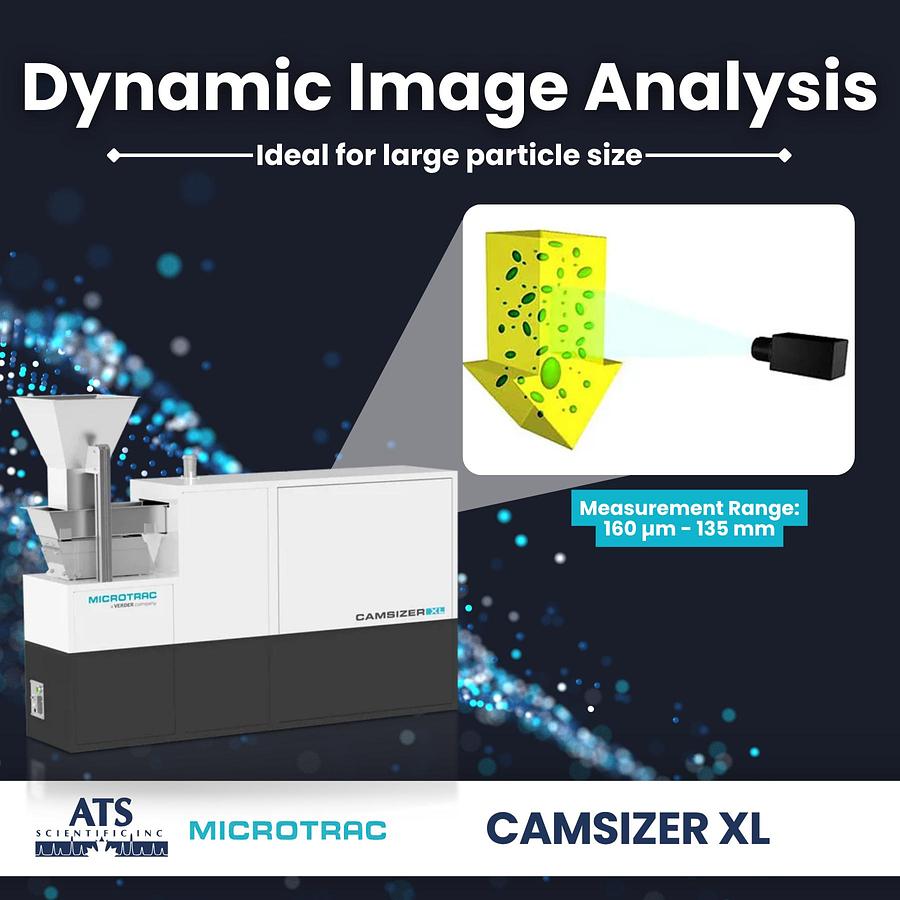

• Dynamic image analysis: Uses optical imaging to analyze particle size and shape.
• 40+ measurement parameters: Measures size, shape, roughness, density and more.

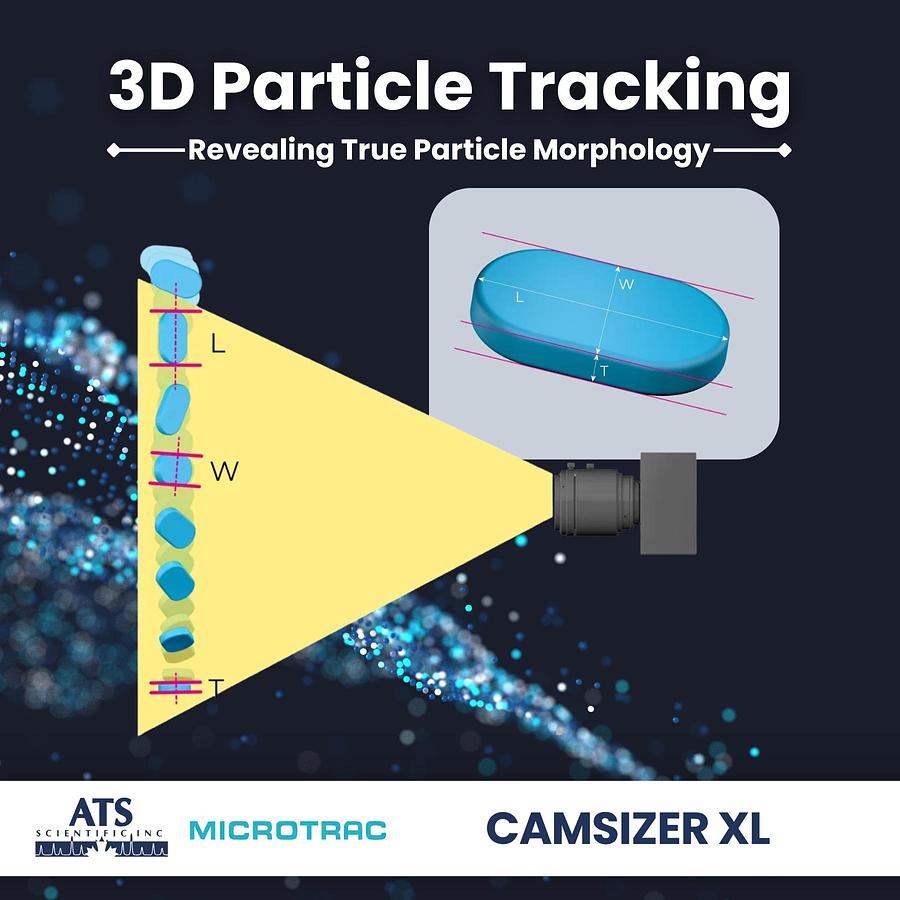

• 3D particle measurement: Provides 3D characterization of particle dimensions.
• High-speed imaging: Analyzes more than 100 images per second.
• High-resolution camera: Captures detailed images of individual particles.
• Non-contact measurement: Analyzes dry particles using optical imaging.
• Customizable sample introduction: Adapts sample feeding to different materials.
• Self-cleaning mechanism: Reduces manual cleaning and routine maintenance.
• Enclosed optical system: Helps reduce maintenance-related downtime.
• Fast measurement time: Completes analysis in approximately 1–5 minutes.
• Large sample quantity: Requires over 2 kg, depending on the application.
• Standardized measurement: Supports analysis under ISO 13322-2 and ISO 9276-6.
• Laboratory installation: Measures 400 × 1229 × 1693 mm.
• Flexible power supply: Operates on 110–230 V, 50–60 Hz.
• Low power consumption: Uses less than approximately 100 W.
