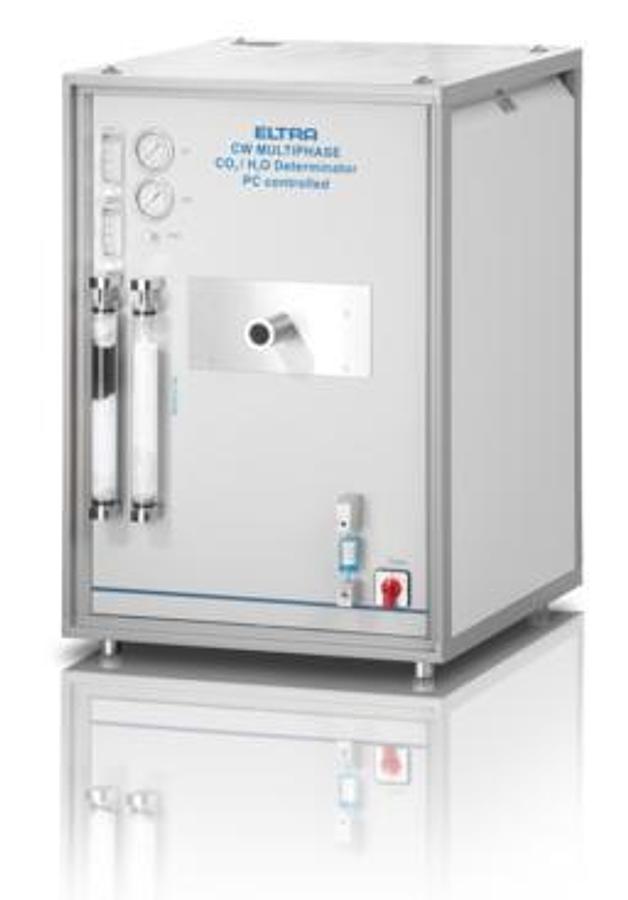

CW-800M Carbon / Water Analyzer

CW-800M Carbon / Water Analyzer

or
Call 1-800-661-6700

Description

ELTRA’s CW-800M analyzer is designed for fractional analysis of carbon and water in one single operation. It is based on the proven technology of the CW-800 but has a modified furnace which allows fast adjustment of the temperature in the furnace. Different fractions of carbon and water of the sample are analyzed by applying different furnacetemperatures.ELTRA’s CW-800M analyzer is designed for the precise, simultaneous determination of carbon (released as CO2) and water in lime, gypsum and cement from trace level up to 100 % (depending on sample weight).Other sample materials include ores, soil, minerals, slags and waste.
Up to five temperature steps (“ramps”) can be programmed for each application. The temperature levels and their durations are selectable. The maximum temperature is 1000°C.
Depending on the application step, either O2can be used as furnace atmosphere (oxidation of the sample) or inert gas like N2or argon.
The detection system of ELTRA’s CW-800M is very sensitive, reliable and guarantees a long lifetime. It can be customized according to the user’s requirements. Two infrared cells can be combined independently and allow highly precise measurement of the released CO2and H2O.

Application Examples

cement, gypsum, limestone, minerals, ores, slag, soil, waste

Product Advantages

  • simultaneous carbon dioxide and water determination with minimal sample preparation
  • Analysis of TOC (Total Organic Carbon) and TIC (Total Inorganic Carbon) without adding acids
  • rapid, precise, accurate and reliable element determination
  • wide range of materials can be analyzed
  • resistance furnace temperature can be set up to 1000 °C in steps of 1 °C
  • up to 5 programmable steps with different temperatures ("ramps") can be defined
  • customized infrared cells provide wide, dynamic measuring range
  • due to gold IR path, increased cell live time for analysis of halogen or acid containig samples
  • powerful software (multilingual, customized display, export of results)
  • single and multipoint calibration
  • no halogen trap required
  • electronic gas flow control
  • low maintenance
  • robust design allows usage in production control and laboratory

    • Features

    Measured elements: Carbon dioxide, water
    Furnace alignment: horizontal
    Sample carrier: quartz boats
    Fields of application: agriculture, biology, chemistry / plastics, construction materials, environment / recycling, geology / mining, others
    Furnace: resistance furnace with quartz tube, adjustable up to 1000 °C
    Catalyst furnace: +
    Process of measurement: temperature and carrier gas can be changed during measurement according to a user-defined program
    Detection method: solid state infrared absorption
    Number of IR cells: 1 - 2
    Material of IR path: gold
    Typical analysis time: 5 - 20 min (depending on program)
    Chemicals required: copper oxide, magnesium perchlorate, sodium hydroxide
    Gas required: nitrogen 99.995 % pure (2 - 4 bar / 30 - 60 psi);
    oxygen 99.995 % pure (2 - 4 bar / 30 - 60 psi)
    Power requirements: 230 V, 50/60 Hz, max. 10 A, 2300 W
    Dimensions (W x H x D): 55 x 80 x 60 cm
    Weight: ~ 65 kg
    Required equipment: balance (resolution 0.0001g), monitor, PC
    Optional accessories: TIC module, voltage stabilizer 5 KVA
