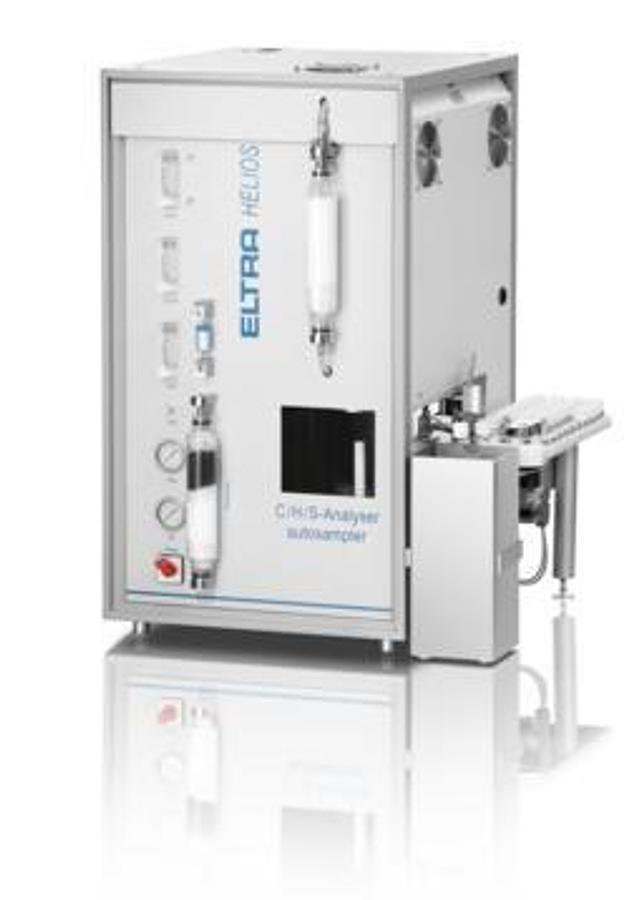

CHS-580A Carbon / Hydrogen / Sulfur Analyzer

ELTRA‘s CHS-580A is the ideal analyzer for the simultaneous determination of carbon, hydrogen, and sulfur in organic samples.
ELTRA’s 580A analyzers (A = Autoloader) are equipped with an automatic sample loader, allowing for analysis of large numbers of samples without operator intervention. The sample loader is available in two versions to accommodate 36 or 130 crucibles. The CHS-580A is based on the technology of the CHS-580 analyzer and features a vertical resistance furnace with ceramic tube.
The temperature can be set in steps of 1 °C to a maximum of 1,550 °C. Thanks to sample weights of up to 500 mg and more even inhomogeneous materials can be reliably analyzed. The analyzer can be equipped with up to three independent infrared cells according to the user’s requirements, allowing for a great variety of applications.

Product Advantages

Features

Measured elements: Carbon, Hydrogen, Sulfur
Samples: organic
Furnace alignment: vertical
Sample carrier: ceramic crucibles
Field of application: agriculture, biology, chemistry / plastics, coal / power plant, construction materials, environment / recycling, medicine / pharmaceuticals
Furnace: resistance furnace (ceramic tube), adjustable up to 1550 °C (steps of 1 °C)
Detection method: solid state infrared absorption
Number of IR cells: 1 - 3
Material of IR path: gold
Typical analysis time: 60 - 180 s
Chemicals required: magnesium perchlorate, sodium hydroxide
Gas required: oxygen 99.5 % pure (2 - 4 bar / 30 - 60 psi);
compressed air (4 - 6 bar / 60 - 90 psi)
Power requirements: 230 V, 50/60 Hz
max. heat up current 2000 W
Dimensions (W x H x D): 55 x 100 x 60 cm
85 x 35 x 45 cm (Autoloader for 130 crucibles)
Weight: ~ 90 kg (analyzer)
~ 15 kg (Autoloader for 130 crucibles)
Required equipment: balance (resolution 0.0001g), monitor, PC
Required accessories: Autoloader (for 36 or 130 crucibles)
Optional accessories: TIC module, voltage stabilizer 5 KVA
