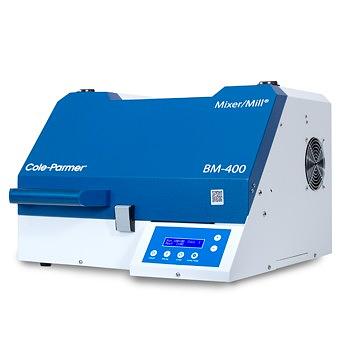

The Cole-Parmer SamplePrep BM-400 Mixer/Mill (SPEX #8000M), is a high-energy ball mill that grinds up to 0.2 - 10 grams of dry, brittle samples. The vial, which contains a sample and one or more balls, is shaken in a complex motion that combines back-and-forth swings with short lateral movements, each end of the vial describing a figure-8. The clamp's motion develops strong G-forces in the vial, to pulverize the toughest rocks, slags and ceramics.

Key Features and Specifications

Also called a shaker mill or high-energy ball mill.

Equipped with safety interlock system for operator protection.

For grinding samples in the 0.2 - 1.5 gram range or mixing up to 5 mL of sample.

Highly effective laboratory impact grinder and blender offering many advantages over other small mixers.

Holds three vials of 1/2 in. (12.7 mm) diameter or two vials of 3/4 in. (19.1 mm) diameter. Length of vials up to 21/4 in. (57.2 mm).

Push-button, resettable 30-minute timer on the 5100-115 Mixer/Mill.

Push-button, resettable 72-minute timer on the 5100-230 Mixer/Mill.

Reduces samples to analytical fineness and commonly used to blend samples with KBr for IR analysis.

Shock mounted motor enables bench top operation.

Steel housing protects the clamp mechanism and rugged construction ensures a long life of heavy work.

Wide selection of grinding and mixing vials available including polystyrene, polycarbonate, hardened steel, stainless steel, tungsten carbide, and agate.
